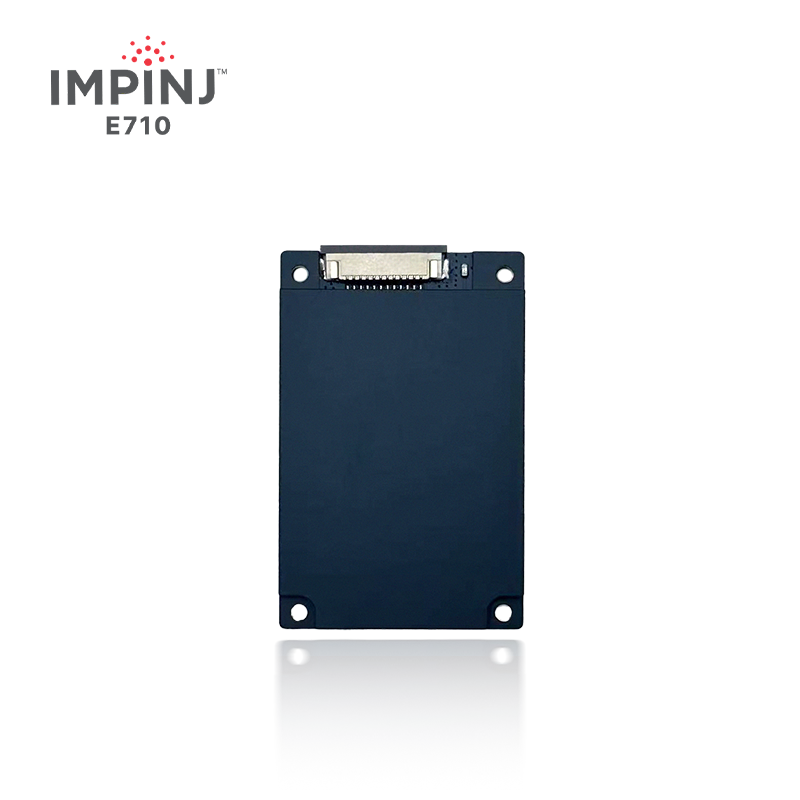

1-Port UHF RFID Reader Module TY901

● Support ISO18000-6C(EPC C1G2) protocol tag;
● 865~868MHz/902~928MHz frequency band(frequency customization optional);
● FHSS or Fix Frequency transmission with RF output power up to 33dbm;
● Effective distance up to 10m (with external 6dbiL antenna and tag E41);
● Maximum inventory speed over 1000pcs/s;
● Tag buffer size up to 1000PCS@96bits EPC;
● MMCX antenna port with antenna failure detection;
● Support RS232 (3.3V TTL level);
● Support RSSI.

¥ 0.00

LEARN MORE

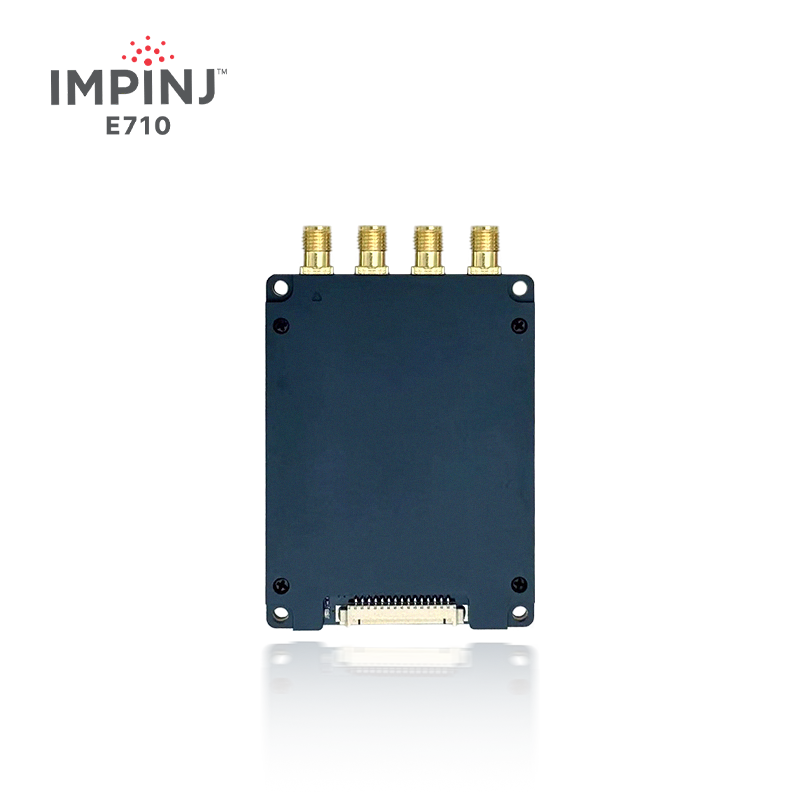

4-Port UHF RFID Reader Module TY902

● Support ISO18000-6C(EPC C1G2) protocol tag;
● 865~868MHz/902~928MHz frequency band(frequency customization optional);
● FHSS or Fix Frequency transmission with RF output power up to 33dbm;
● Effective distance up to 10m (with external 6dbiL antenna and tag E41);
● Maximum inventory speed over 1000pcs/s;
● Tag buffer size up to 1000PCS@96bits EPC;
● 4 SMA antenna port with antenna failure detection;
● Support 4 GPIOs (2 input and 2 outputs);
● Support RS232 (3.3V TTL level);
● Support RSSI.

¥ 0.00

LEARN MORE

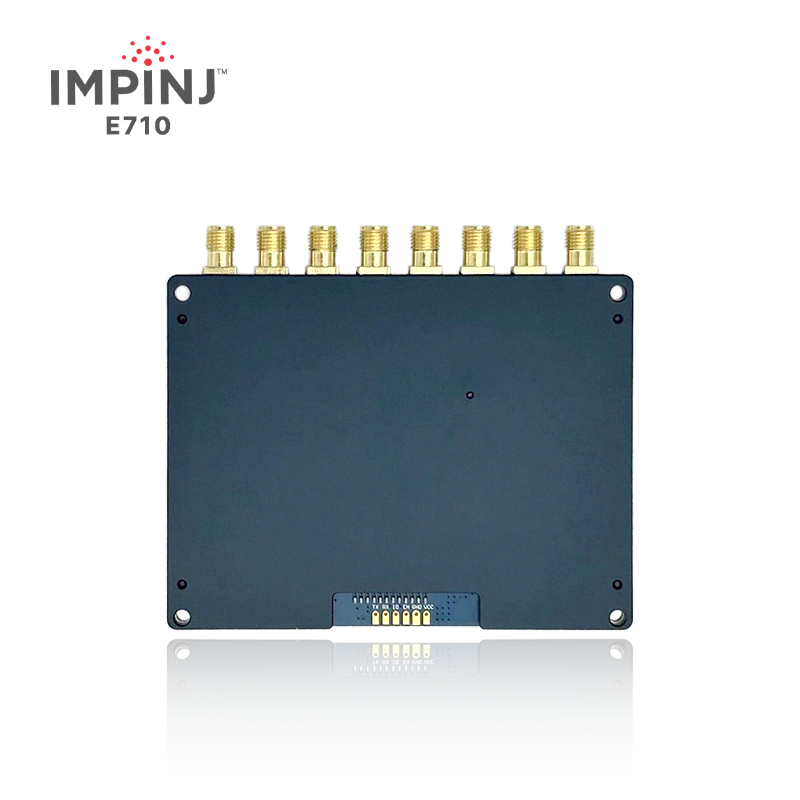

8-Port UHF RFID Reader Module TY903

● Support ISO18000-6C(EPC C1G2) protocol tag;
● 865~868MHz/902~928MHz frequency band(frequency customization optional);
● FHSS or Fix Frequency transmission with RF output power up to 33dbm;
● Effective distance up to 10m (with external 6dbiL antenna and tag E41);
● Maximum inventory speed over 1000pcs/s;
● Tag buffer size up to 1000PCS@96bits EPC;
● 8 SMA antenna port with antenna failure detection;
● Support 4 GPIOs (2 input and 2 outputs);
● Support RS232 (3.3V TTL level);
● Support RSSI.

¥ 0.00

LEARN MORE

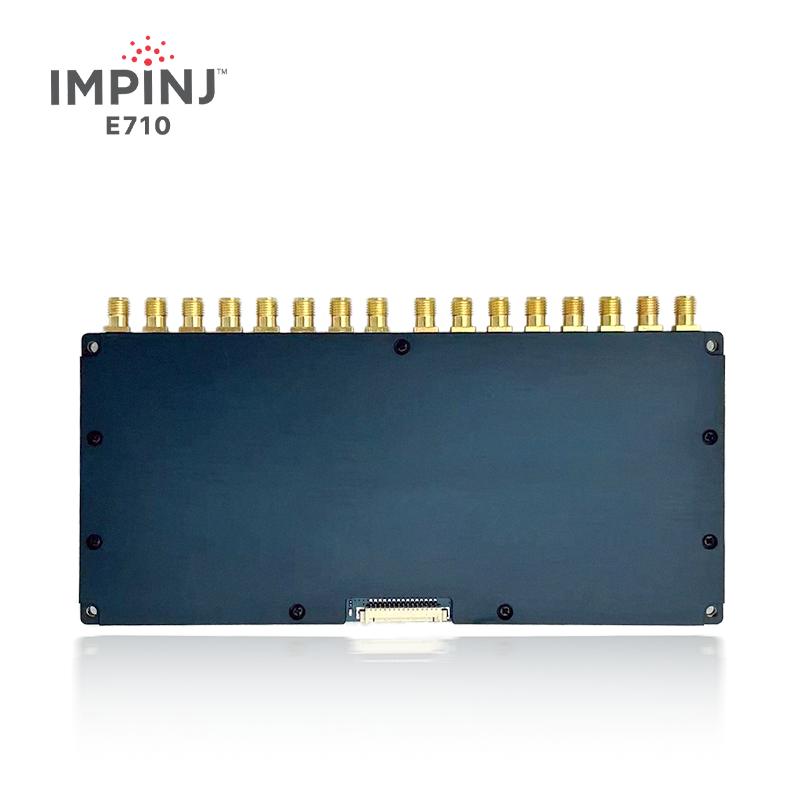

16-Port UHF RFID Reader Module TY904

● Support ISO18000-6C(EPC C1G2) protocol tag;
● 865~868MHz/902~928MHz frequency band(frequency customization optional);
● FHSS or Fix Frequency transmission with RF output power up to 33dbm;
● Effective distance up to 10m (with external 6dbiL antenna and tag E41);
● Maximum inventory speed over 1000pcs/s;
● Tag buffer size up to 1000PCS@96bits EPC;
● 16 SMA antenna port with antenna failure detection;
● Support 4 GPIOs (2 input and 2 outputs);
● Support RS232 (3.3V TTL level);
● Support RSSI.

¥ 0.00

LEARN MORE

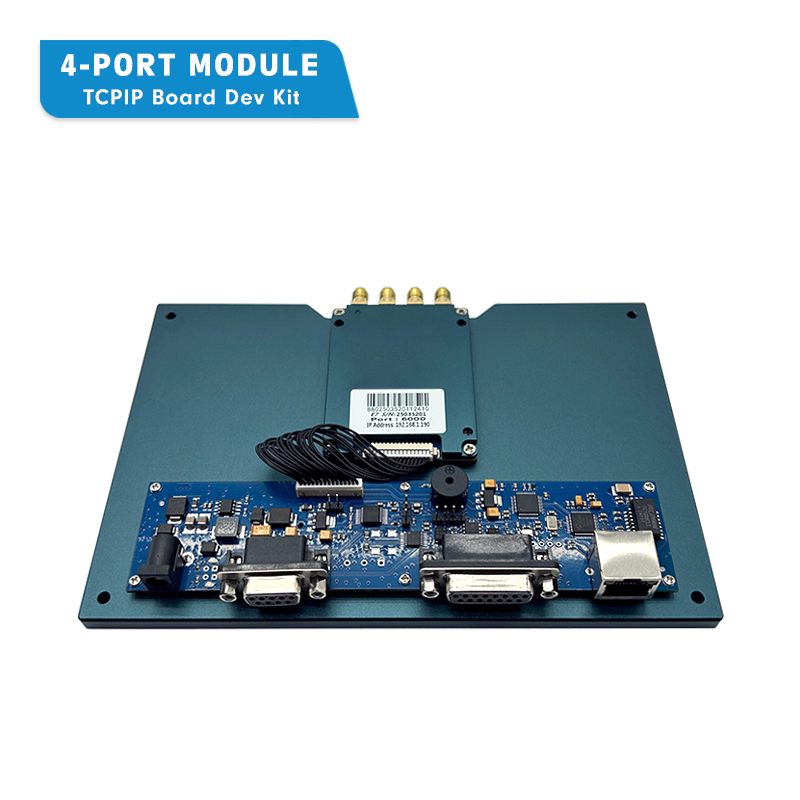

4-Port UHF Module Dev Kit TY903-45DB

● Support ISO18000-6C(EPC C1G2) protocol tag;
● 865~868MHz/902~928MHz frequency band(frequency customization optional);
● FHSS or Fix Frequency transmission with RF output power up to 33dbm;
● Support RJ45(TCP/IP), RS232, GPIO interfaces;
● Maximum inventory speed over 1000pcs/s;
● Tag buffer size up to 1000PCS@96bits EPC;
● 4 SMA antenna port with antenna failure detection;
● Support 4 GPIOs (2 input and 2 outputs);
● Support RS232 (3.3V TTL level);
● Support RSSI.

¥ 0.00

LEARN MORE

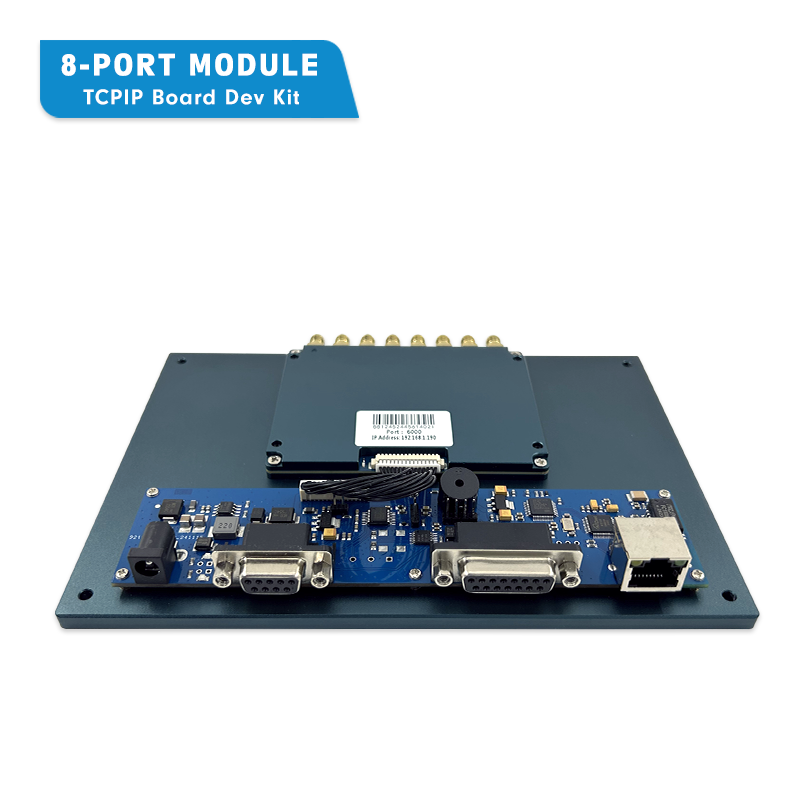

8-Port UHF Module Dev Kit TY903-45DB

● Support ISO18000-6C(EPC C1G2) protocol tag;
● 865~868MHz/902~928MHz frequency band(frequency customization optional);
● FHSS or Fix Frequency transmission with RF output power up to 33dbm;
● Support RJ45(TCP/IP), RS232, GPIO interfaces;
● Maximum inventory speed over 1000pcs/s;
● Tag buffer size up to 1000PCS@96bits EPC;
● 8 SMA antenna port with antenna failure detection;
● Support 4 GPIOs (2 input and 2 outputs);
● Support RS232 (3.3V TTL level);
● Support RSSI.

¥ 0.00

LEARN MORE

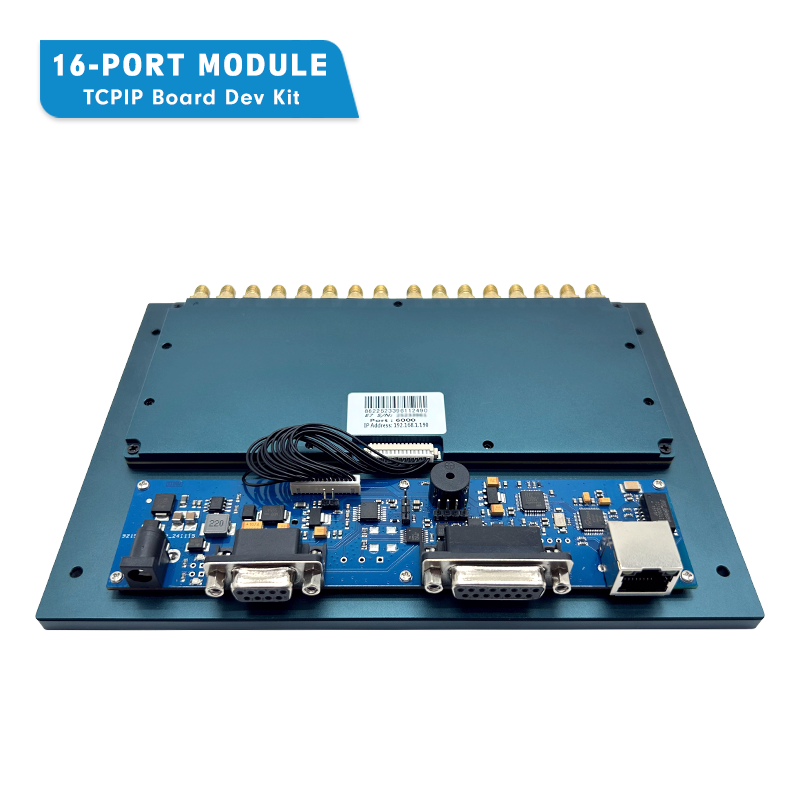

16-Port UHF Module Dev Kit TY904-45DB

● Support ISO18000-6C(EPC C1G2) protocol tag;
● 865~868MHz/902~928MHz frequency band(frequency customization optional);
● FHSS or Fix Frequency transmission with RF output power up to 33dbm;
● Support RJ45(TCP/IP), RS232, GPIO interfaces;
● Maximum inventory speed over 1000pcs/s;
● Tag buffer size up to 1000PCS@96bits EPC;
● 16 SMA antenna port with antenna failure detection;
● Support 4 GPIOs (2 input and 2 outputs);
● Support RS232 (3.3V TTL level);
● Support RSSI.

¥ 0.00

LEARN MORE
RS232 12pin Interface Board DEV322B

● Support RS232 interface；
● FPC connector, support 12pin.

¥ 0.00

LEARN MORE
RS232 15pin Interface Board DEV325B

● Support RS232 interface；
● FPC connector, support 15pin.

¥ 0.00

LEARN MORE
